    Gitkube Logo

    Gitkube

    Gitkube is a tool for building and deploying Docker images on Kubernetes using git push.

    After a simple initial setup, users can simply keep git push-ing their repos to build and deploy to Kubernetes automatically.

    GoDoc

    Gitkube

    When should I use gitkube?

    1. Ideal for development where you can push your WIP branch to the cluster to test.
    2. Reference implementation for writing git-based automation on your server. Fork this repo and create your own CRD + controller + git remote hook that can do things on the Kubernetes cluster.

    Features:

    • No dependencies except native tooling (git, kubectl)
    • Plug and play installation
    • Simple public key based authentication
    • RBAC ready - Control access to git remotes using RBAC
    • Support for namespace based multi-tenancy - Remotes can only deploy to their own namespace
    • No assumptions about repository structure

    Getting started

    Gitkube will run on any Kubernetes vendor/distribution AS IS. In case you find any difficulties in the setup, please comment on #33

    Install gitkube

    Using kubectl
    kubectl create -f https://raw.githubusercontent.com/hasura/gitkube/master/manifests/gitkube-setup.yaml

    #expose gitkubed service
    kubectl --namespace kube-system expose deployment gitkubed --type=LoadBalancer --name=gitkubed
    Using gitkube CLI (DEPRECATED)
    1. Install Gitkube CLI:

      • Linux/MacOS
      curl https://raw.githubusercontent.com/hasura/gitkube/master/gimme.sh | bash
      scoop install gitkube

      Or download the latest release and add it to your PATH.

    2. Use Gitkube CLI to install Gitkube on the cluster:

      gitkube install

    Workflow

    • Local dev: User creates a base git repo for the application with Dockerfile and K8s deployment
    • Setting Remote: User defines a spec for Remote containing the rules for git push
    • Deploying application: Once a Remote is setup, application can be deployed to K8s using git push <remote> master

    Local dev

    User should have a git repo with source code and a Dockerfile. User should also create a base K8s deployment for the application.

    Setting Remote

    A Remote resource consists of 3 parts:

    1. authorizedKeys: List of ssh-keys for authorizing git push.
    2. registry: Details of docker registry where images are pushed post-build.
    3. deployments: Spec for building docker image and updating corresponding K8s deployment.

    Here is a typical spec for a Remote:

    apiVersion: gitkube.sh/v1alpha1
    kind: Remote
    metadata:
      name: sampleremote
      namespace: default
    spec:

    # Insert ssh-keys for allowing users to git push
      authorizedKeys:
      - "ssh-rsa your-ssh-public-key"

    # Provide registry details: https://github.com/hasura/gitkube/blob/master/docs/registry.md
      registry:
        url: "docker.io/user"
        credentials:
          secretRef: regsecret                # Name of docker-registry secret

    # Define deployment rules
      deployments:
      - name: www                             # Name of K8s deployment which is updated on git push
        containers:
        - name: www                           # Name of container in the deployment which is built during git push
          path: example/www                   # Docker build context path in the git repo
          dockerfile: example/www/Dockerfile  # Location of Dockerfile for the source code

    Deploying application

    Once a Remote is created, it gets a git remote URL which you can find in its status spec

    $ kubectl get remote sampleremote -o yaml
    ...
    status:
      remoteUrl: ssh://default-sampleremote@35.225.226.96/~/git/default-sampleremote
      remoteUrlDesc: ""

    Add the generated remoteUrl in git

    $ git remote add sampleremote ssh://default-sampleremote@35.225.226.96/~/git/default-sampleremote

    And finally, git push

    $ git push sampleremote master

    More examples

    Follow this example repo for more workflows with gitkube.

    How it works

    Gitkube has three components:

    1. Remote: Custom resource defined by a K8s CRD
    2. gitkube-controller: Controller that manages Remote objects and propogates changes to gitkubed
    3. gitkubed: Git host that builds docker image from the repo and rolls out deployment

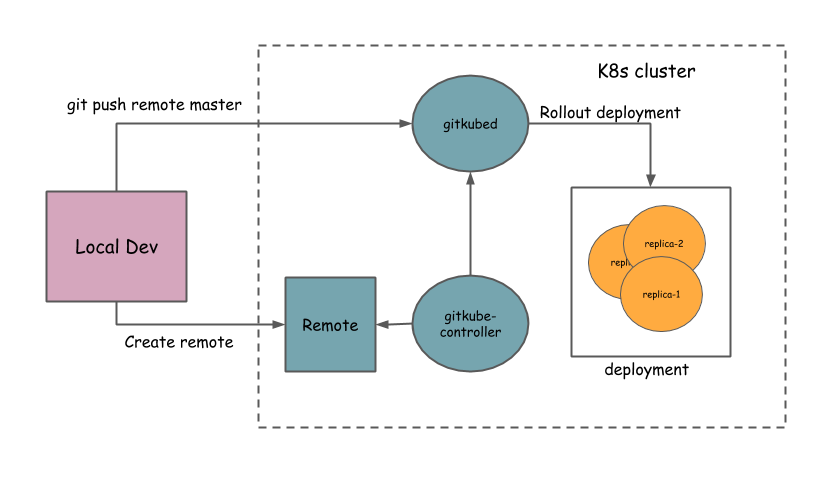

    High-level architecture

    Architecture

    Contributing

    Gitkube is an open source project licensed under Apache License 2.0

    Contributions are welcome.

    Community and Support

    Maintainers

    This project has come out of the work at hasura.io. Current maintainers @Tirumarai, @shahidh_k.

    Follow @gitkube to stay updated.

    Gitkube logo concept and design by Samudra Gupta.
